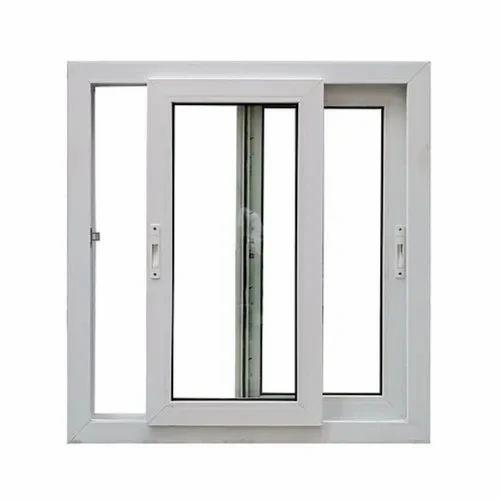

Baydee uPVC 2 Track Sliding Series (Standard Sliding System)

Overview

The Baydee 2 Track Series is the standard sliding system designed for compact windows and smaller balcony openings. It’s one of Baydee’s most popular series due to its balance between cost, strength, and aesthetics.
This model is commonly used where mosquito mesh tracks are not needed (unlike the 2.5 Track systems).


---

Series Size & Variants

Baydee manufactures 2 Track profiles mainly in 60mm, 70mm, and 80mm series — depending on the project requirement and wind load.

Model / Series Frame Depth (Width) Typical Application Glass Thickness Support Remarks

2 Track 60 Series 60 mm Standard sliding windows 5–16 mm Most economical; compact for smaller openings
2 Track 70 Series 70 mm Medium-size sliders & balcony windows 5–18 mm Balanced performance & aesthetics
2 Track 80 Series 80 mm Large windows / sliding doors 5–21 mm Heavier-duty frame; smoother operation



---

General Specifications

Parameter Specification

System Type 2 Track Sliding (2 glass panels)
Profile Material Lead-free uPVC, multi-chamber design
Wall Thickness 2.3–2.5 mm
Reinforcement GI (Galvanized Iron) reinforcement inside frame & sash
Gasket System EPDM co-extruded weather seals
Drainage System Built-in weep holes for water discharge
Hardware Standard rollers, locks, and handles
Sound Insulation 25–30 dB (depending on glazing)
Wind Load Resistance 2000–2500 Pa (as per IS 875)
Color Options White, Woodgrain, Golden Oak, Dark Walnut, etc.
Warranty 10–20 years (depending on profile range and supplier agreement)



---

Key Features

Compact and elegant frame suitable for all standard openings.

Smooth sliding with stainless steel rollers.

Long life, weatherproof, and termite-proof.

Low maintenance – just wipe clean occasionally.

Optional mosquito mesh via 2.5 Track upgrade.

Excellent value for residential and commercial use.
